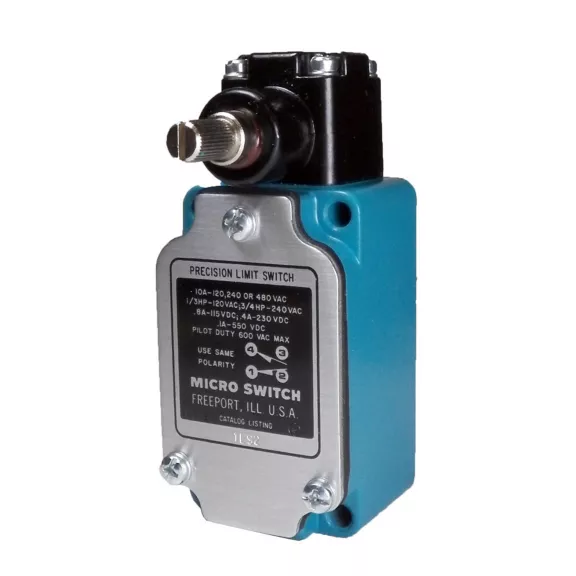

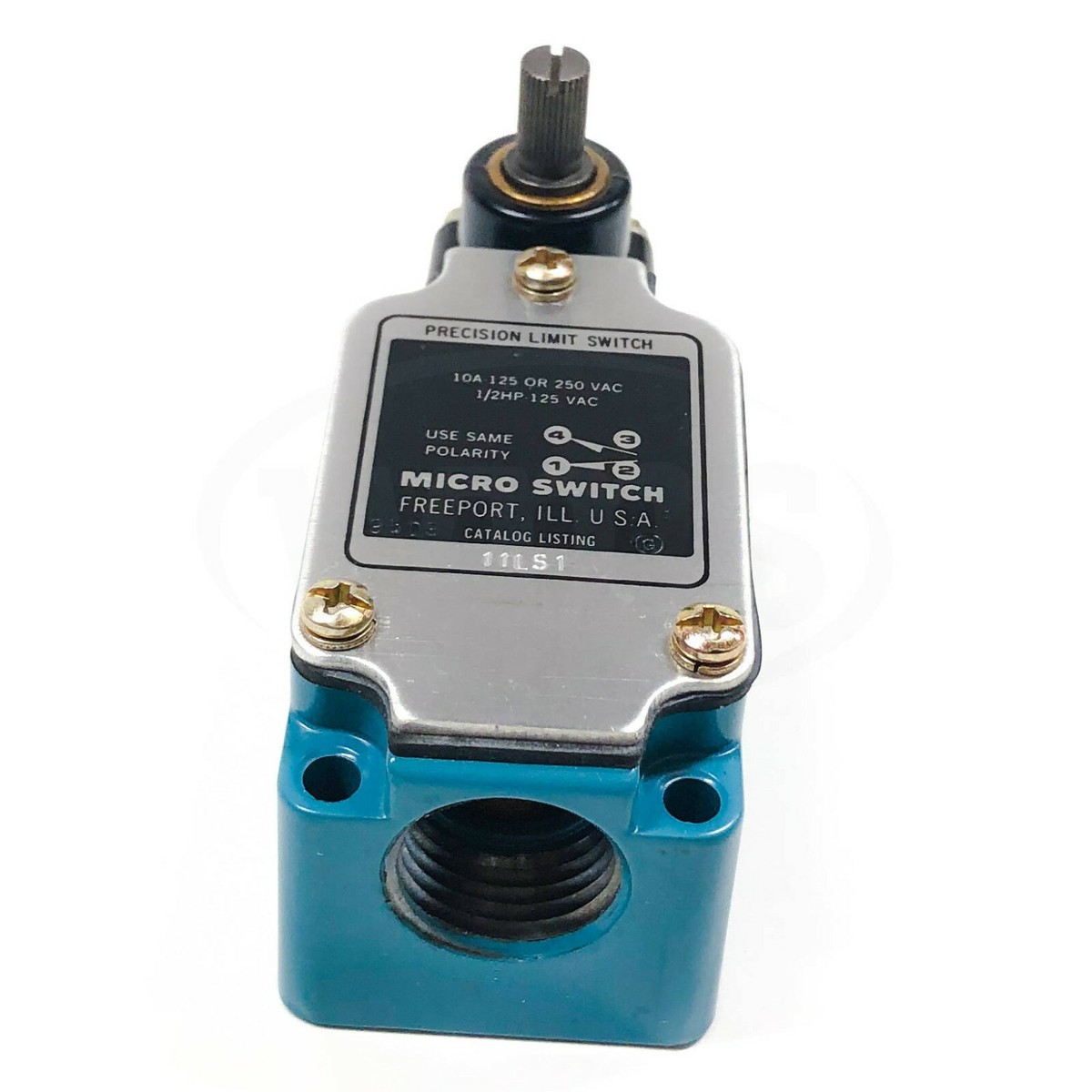

Honeywell 11LS1 | Limit Switches
Limit Switches N.O./N.C. 10A Enclosed Switch
₹41225.00₹37102.00
Out of stock
Note: Images are for reference only
Specifications:
Product Attribute | Attribute Value |
|---|---|
Manufacturer: | Honeywell |
Product Category: | Limit Switches |
Illuminated: | Non-Illuminated |
Contact Form: | DPDT |
Actuator: | Side |
Current Rating: | 10 A |
Voltage Rating AC: | 250 VAC |
Operating Force: | 0.51 N |
NEMA Rating: | 1, 3, 4, 6, 13 |
Termination Style: | Screw |
Brand: | Honeywell |
Product Type: | Limit Switches |
Factory Pack Quantity: | 1 |
Subcategory: | Switches |
Tradename: | Microswitch |
Unit Weight: | 517.104 g |
Key features
Durable and reliable: The switch is built to provide longevity, precision, and consistent repeatability over millions of operations, even under severe conditions.
Compact size: The 11LS1
fits into spaces that are too small for many other fully adjustable limit switches.
Environmental protection: The housing is constructed to be oil-tight, water-tight, and dust-tight, with an ingress protection rating of IP67.
Electrical configuration:
Circuit: DPDT (Double Pole, Double Throw), often described as DPDT (DB/DM).
Contact form: DPDT.
Current rating: 10 A (AC).
Voltage rating: 125 VAC.
Actuator: The standard actuator type for the
11LS1
is a side rotary with a roller lever.
Termination: Screw terminals.
Mounting: Chassis mount.
Applications
The 11LS1 limit switch is used in a variety of industrial settings, including:
Machine tools
Conveyors and material handling equipment
Metal fabrication equipment
Aerospace and defense systems
Water and irrigation systems
Medical equipment
